• Grille guard screen, insect protection (mounted behind grille)
• Antenna, fixed mast
• Spare tire delete (STD)
• Wheel, spare delete
• Door handles, Black
• Front fender extension, painted body color
• Lamps, cargo area, cab mounted with switch on center switch bank
• Lamps, Smoked Amber roof marker
• Headlamps, halogen projector-beam
• Fog lamps, front, halogen
• Paint, solid
• Assist Steps, aluminum
• Tires, rear 225/70R19.5G traction blackwall Goodyear Max Axle Load: 15,000 lb.
• Wheels, 19.5" x 6.75", steel, Grey painted, 8-holes, hub piloted
• Lamps, rear, LED stop/turn and license plate, with incandescent backup lamps
• Grille, chrome
• Bumper, front chrome
• Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• Tires, front 225/70R19.5G traction blackwall Goodyear Max Axle Load: 7,940 lb.
• Auxiliary harness, 3' for headlamps and turn signals
• Tail lamp wiring harness provisions includes wiring for standard left and right taillamps, separate 8 feet of extra cable wiring for left and right body-mounted tail lights
• Mirrors, outside heated power-adjustable vertical trailering, upper glass, manual-folding and extending, black. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Grille guard screen, stone protection (mounted to bumper)
• Summit White
• Oil seal for front hub, Chicago Rawhide Nitrile for oil lubricated wheel bearings
• License plate kit, front
• Electrical Provisions, rear of frame, upfitter, body builder wiring includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
• Paint Scheme, Style 1
• Spare tire delete (STD)
• Mud Flaps, front
• Glass, deep-tinted

• Visors, driver and front passenger, vinyl
• Seat trim, Vinyl
• Speedometer, miles/kilometers
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Floor covering, Graphite-colored rubberized-vinyl
• Steering wheel, urethane
• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Steering column, manual Tilt-Wheel
• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information (Included and only available with (IO3) Audio System with 4.2" diagonal color display or (IOR) Chevrolet Infotainment System with 7" diagonal color touch-screen.)
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Dark Ash seats with Jet Black interior accents, Vinyl seat trim
• Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• Power outlet, 110-volt AC
• Seats, front 40/20/40 split-bench, cloth or vinyl 3-passenger. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
• Remote Keyless Entry
• Wiring harness accessory for 9L7 wiring to junction block Includes connector and blunt cut wires
• Seat adjuster, driver 10-way power
• Defogger, rear-window electric
• Windows, power with driver express up and down and express down on all other windows

• Front suspension, 7,500 lb. (3,402 kg) multi-leaf, includes shock absorbers
• Emissions, 50 state certification
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Axle, Open rear axle, non-locking rear
• Capped Fuel Fill
• Steering, power (Bosch S2 8014 Plus)
• Emissions, USA 50 State certified
• Incomplete vehicle
• Fuel, diesel B20
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Trailering provisions, trailering wire harness only, trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
• Rear axle, 4.30 ratio Max road speed: 75 MPH
• Front axle, 7,500 lb., Dana Spicer 60-256, single-reduction, front driving
• Axle lubricant, front, synthetic oil EmGard FE-75W-90
• Exhaust brake
• Four wheel drive
• Trailer brake controller, integrated
• Batteries, heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
• Additional fuel, 5 gallons

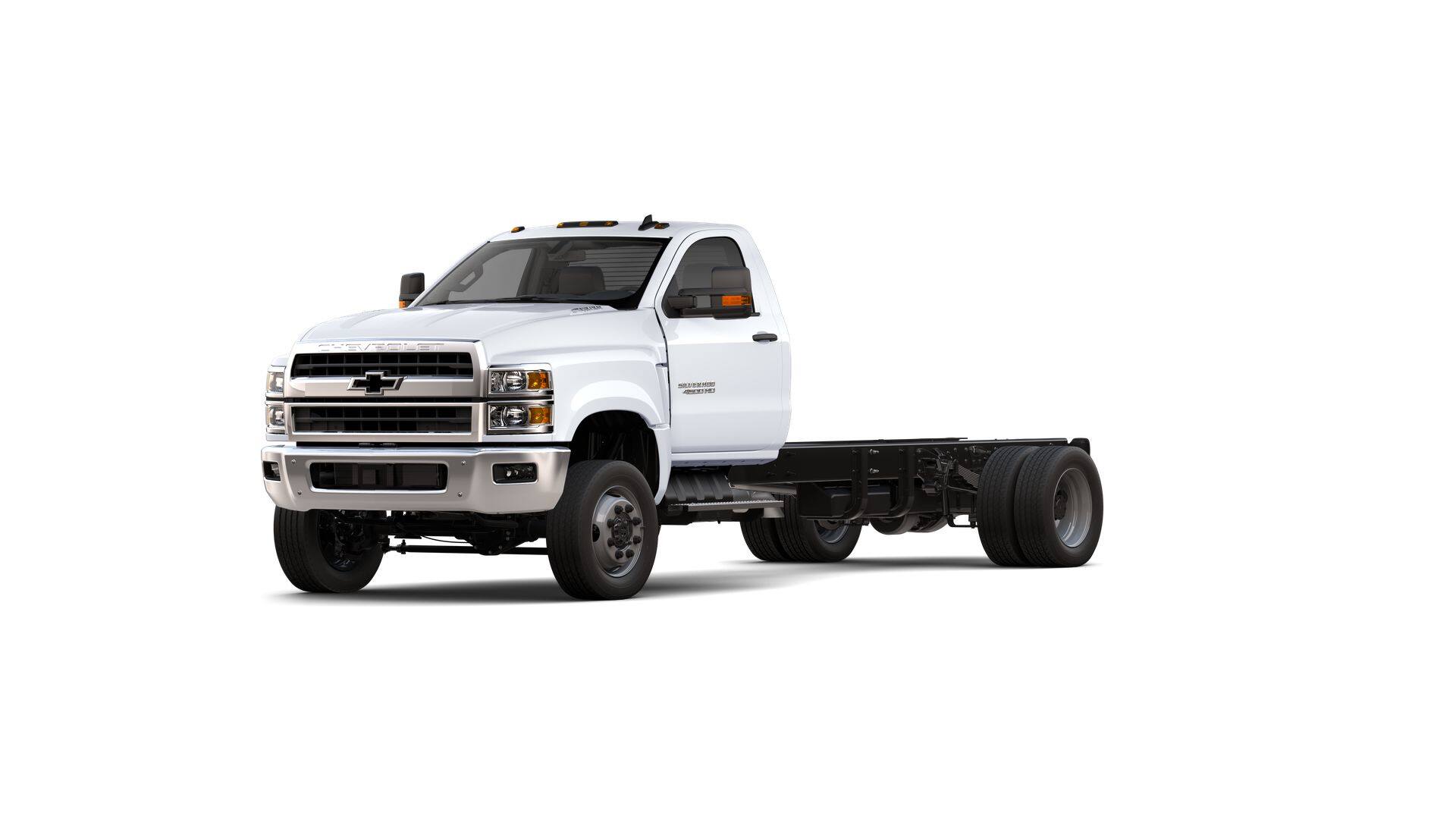

• 4500 HD Series
• DPF, diesel particulate filter, manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• Wheelbase, 201" (510.5 cm), 120" CA
• Battery, top post threaded, battery jump start stud (located on battery box)
• Axle, limited slip, Dana Spicer Truetrac, torque proportioning limited slip
• Shock Absorbers, rear
• Fuel tank, front and rear, 65 gallon total
• Exhaust system, rear exit
• Rear axle, 4.30 ratio Max road speed: 75 MPH
• Rear axle, 15,000 lb. (6,804 kg) Dana Spicer S16-130, single reduction
• Alternators, dual, 150 amps and 220 amps each
• Axle to End of Frame, 75"
• Rear suspension, 13,500 lb. (6,123 kg) multi-leaf, vari-rate
• GVWR, 16,000 lb. (7257 kg)
• Skid Plate, steel, frame-mounted, protects the transfer case from the ground
• Recovery hooks, front, frame-mounted, black
• 34,000 lb. GCWR (15,422 kg)
• Front stabilizer bar

• Work Truck Preferred Equipment Group includes standard equipment
• Snow Plow Prep Package includes (UNL) auxiliary harness for headlamps and turn signals, (KW5) 220-amp alternator, forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon

• Daytime Running Lamps, with automatic exterior lamp control

• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera, display integrated into Radio (Shipped loose in cab for upfitter installation.)
• OnStar, delete
• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Horn, dual-note
• Backup alarm (Includes (SFW) SEO Calibration for backup alarm.

• StabiliTrak, Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
• Brake, parking, driveline park brake system
• Traction control

Snow Plow Prep Package

• DriveType
• DriveType: Four Wheel Drive
• Fuel Economy
• City: 0
• Hwy: 0
• Combined: 0
• Fuel System
• Fuel System: Direct Injection
• Fuel Tank Capacity
• Fuel Tank Capacity: 65 gal
• Fuel Type
• Fuel Type: Diesel Fuel
• Horse Power
• Horse Power: 350
• Rear Wheel
• Rear Wheel: Dual
• Trailering Capacity
• Trailering Capacity: 0
